AGV Battery Swap Cabinet Solution

Project Background

With the comprehensive upgrading of warehousing logistics, smart factories and intelligent manufacturing, Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) have been widely deployed to perform high-frequency tasks such as handling, sorting and transit.

The traditional operation mode for AGVs relies on manual plug-in charging, manual battery handling and downtime for charging, which brings multiple drawbacks. Long charging hours lead to high equipment downtime, while manual battery replacement incurs high labor costs. Irregular replacement operations may damage batteries, and battery conditions cannot be effectively monitored. All these factors restrict operational efficiency and fail to meet the requirements of 24/7 uninterrupted automated production in factories.

To realize unmanned, intelligent and continuous operation of AGVs, dedicated intelligent battery swapping equipment is required. It enables automatic battery swap, centralized charging and intelligent management to achieve zero-downtime power supply, ensuring efficient operation of smart warehousing and factory automation systems.

Solution Overview

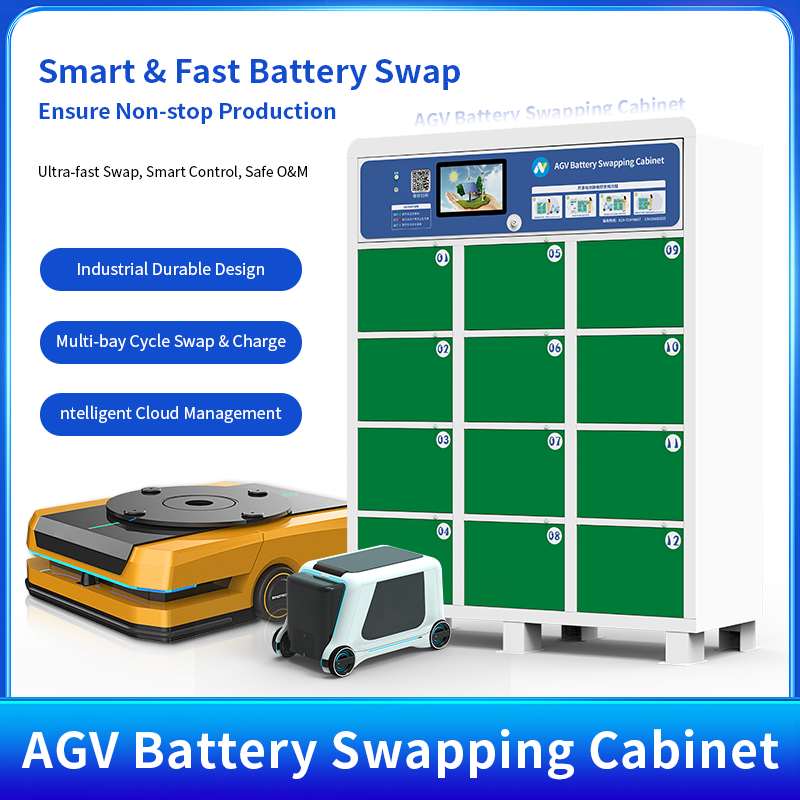

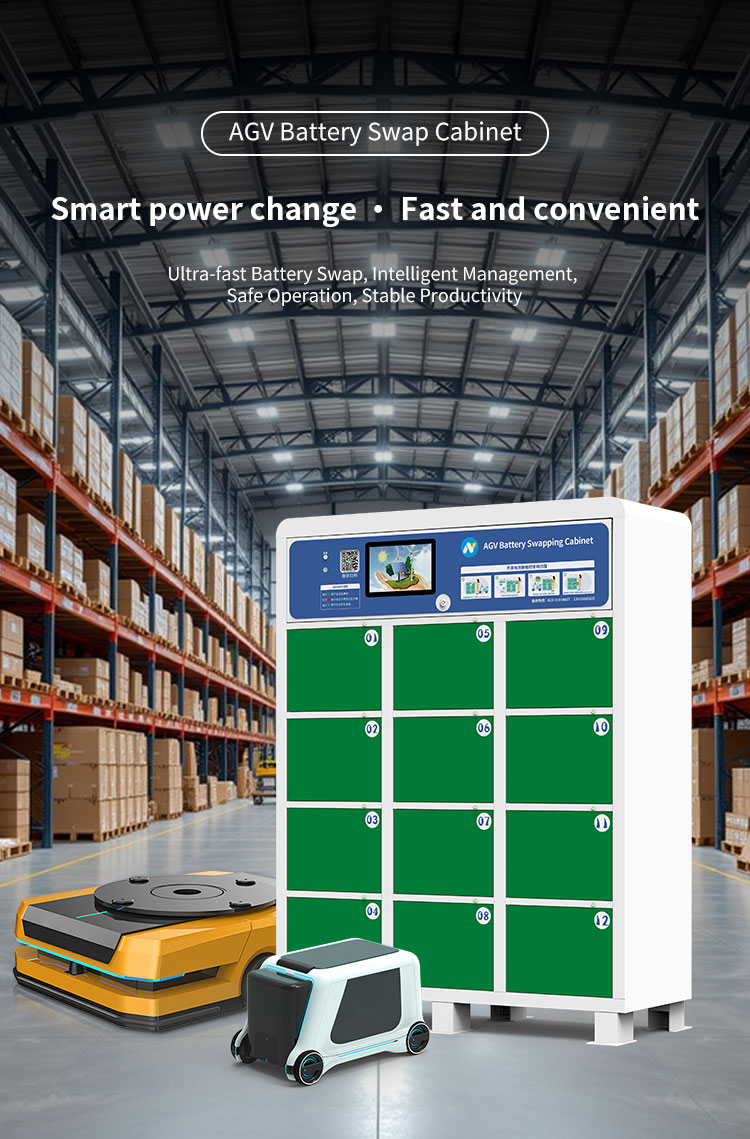

This AGV battery swap cabinet solution is specially designed for lithium batteries of industrial AGVs and AMRs. As an integrated industrial-grade intelligent system integrating centralized charging, automatic battery swapping, battery management and safety protection, it fully replaces manual charging and battery replacement, and complies with unmanned operation standards for factories.

Core Solution Features

Industrial-grade Cabinet Design

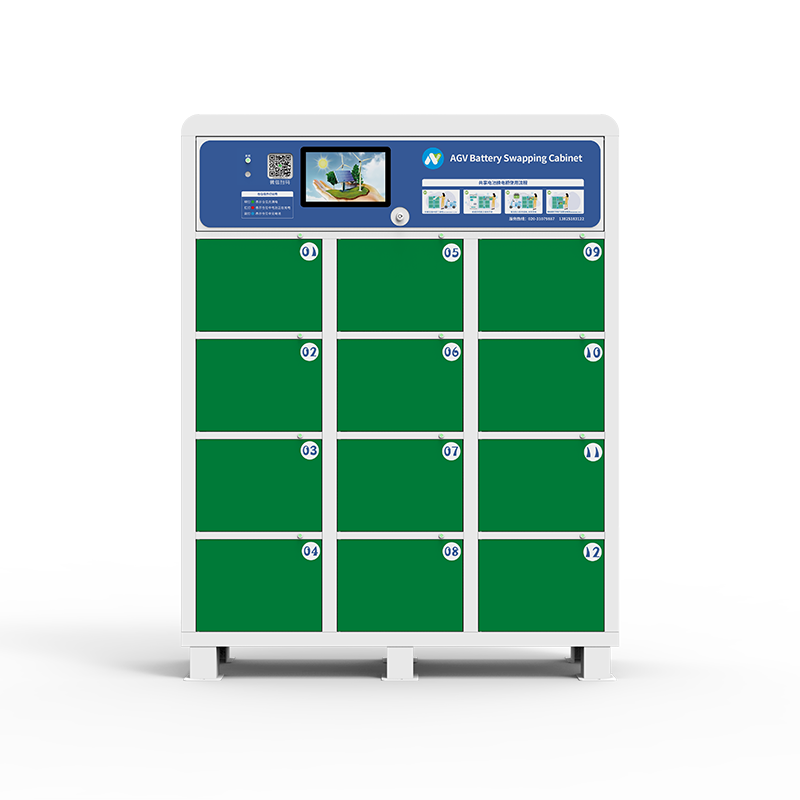

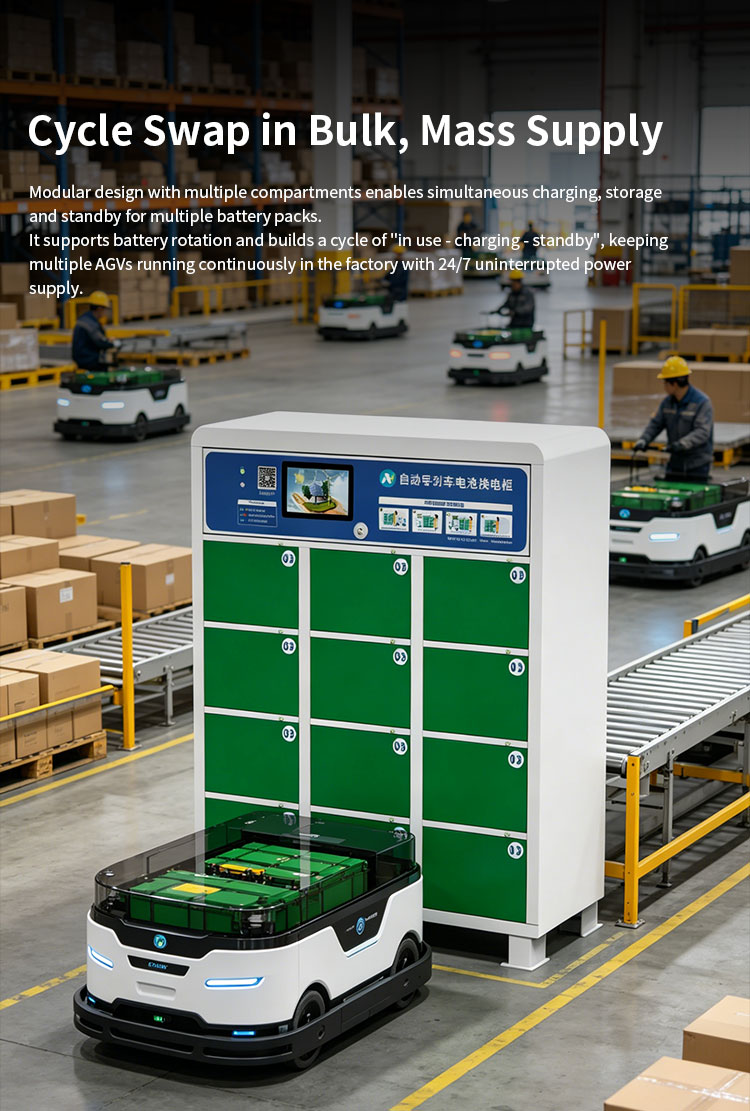

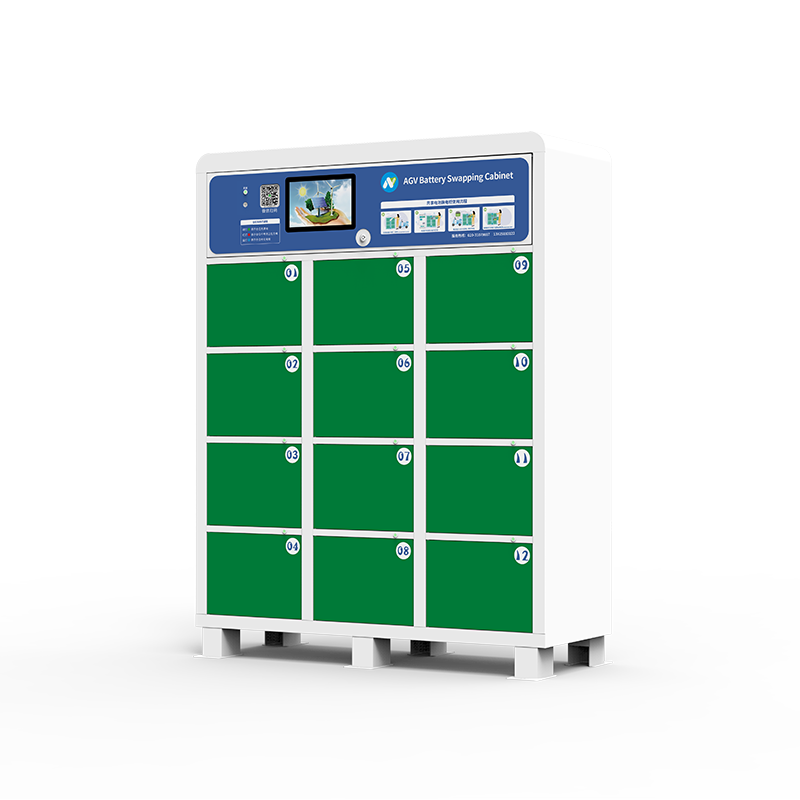

The cabinet adopts industrial sheet metal structure with independently isolated compartments. It is compatible with high-capacity dedicated lithium batteries for AGVs, allowing multiple batteries to be stored and charged simultaneously. Featuring dustproof and moistureproof performance, it adapts to harsh working conditions in workshops.

Intelligent & Safe Charging System

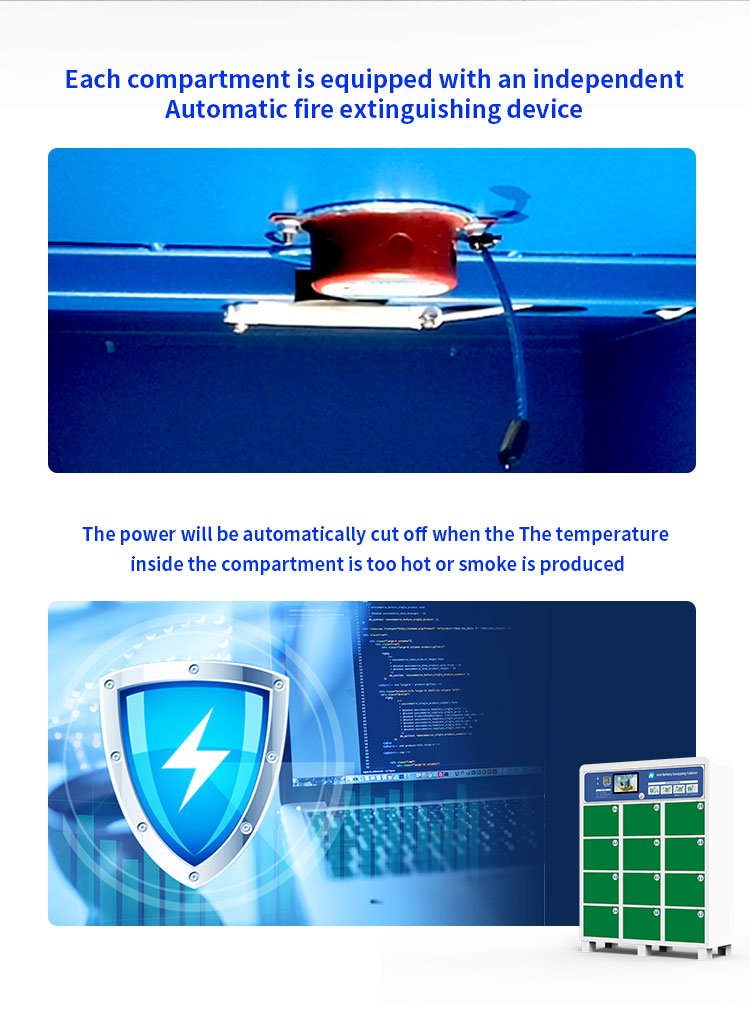

Each compartment is independently controlled. The system automatically identifies battery voltage and matches charging parameters to realize constant current and constant voltage charging with auto-stop upon full charge. It is equipped with multi-level protection against overheating, overcurrent, short circuit and electric leakage, as well as flame retardant and explosion-proof functions, eliminating potential safety hazards of centralized industrial charging.

Unmanned Self-service Battery Swap

Batteries can be accessed via card swiping, QR code scanning or authorized password. Operators can complete battery swap within seconds. AGVs are no longer required to stop for charging, enabling continuous cyclic operation and greatly improving production efficiency.

Full Lifecycle Battery Management

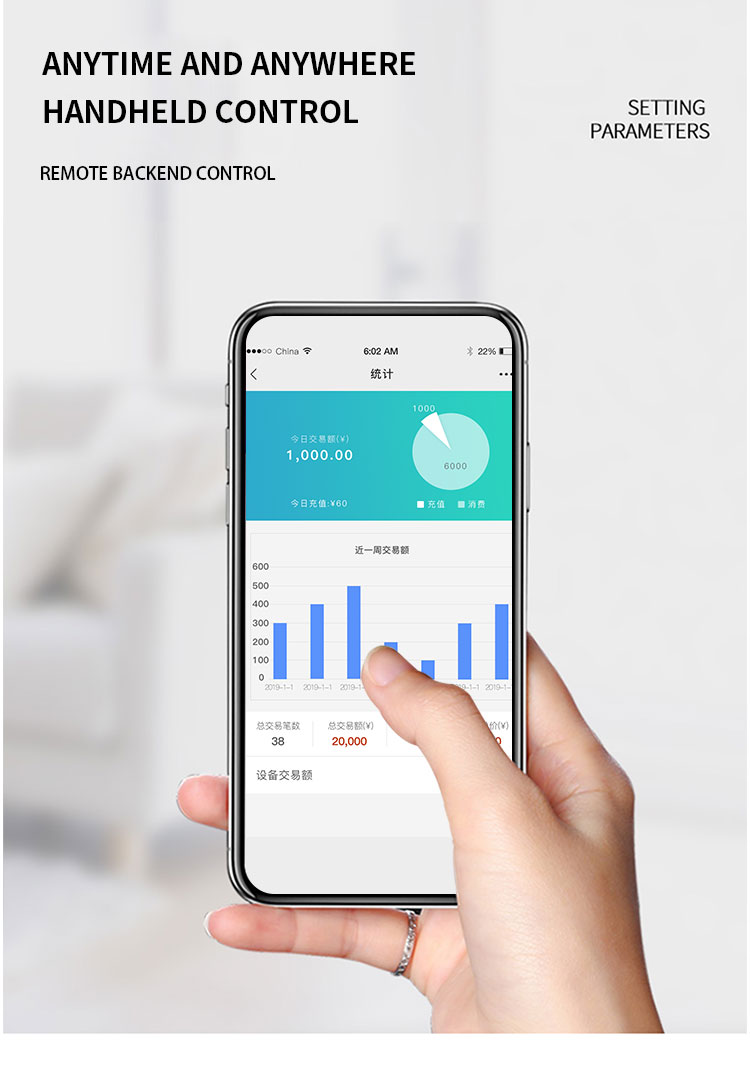

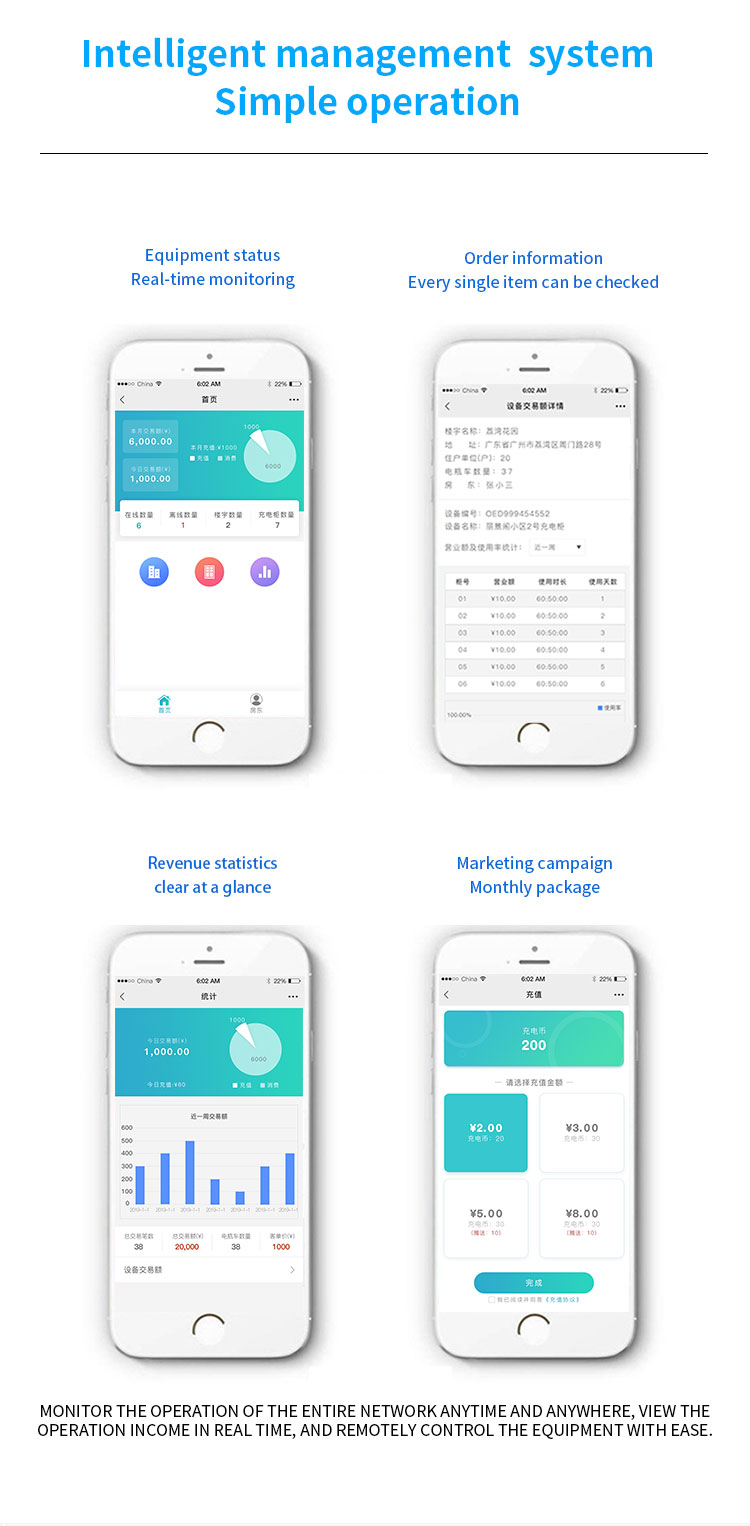

Equipped with a cloud-based intelligent platform, the system monitors real-time battery level, temperature, charging cycles, health status and fault records. It supports data traceability, abnormal alarms, compartment status recognition and automatic report generation, realizing digitalized battery management.

Adaptable to 24/7 Industrial Operation

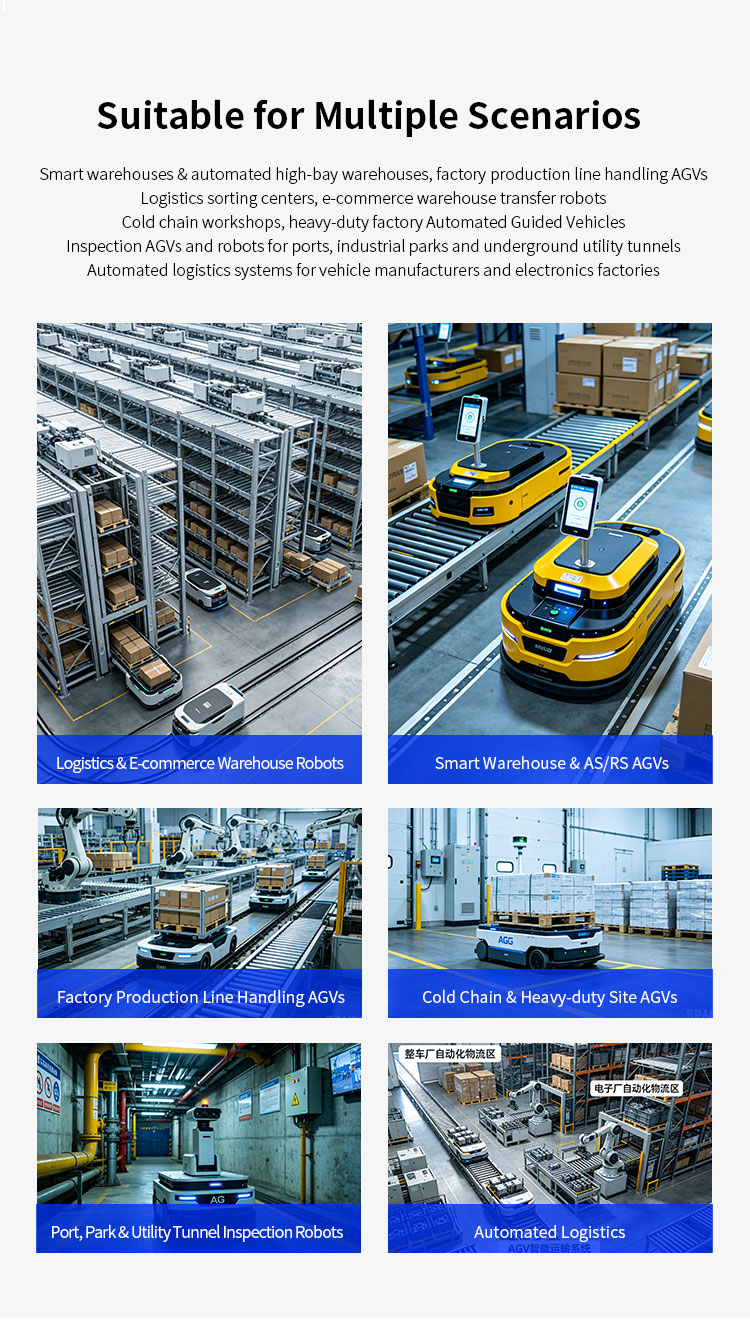

This solution addresses pain points including AGV downtime for charging, low efficiency of manual battery replacement and uncontrollable battery loss. It perfectly fits the all-weather automated operation demands of smart factories, automated high-bay warehouses and logistics sorting centers.
